PRODUCTS CENTER

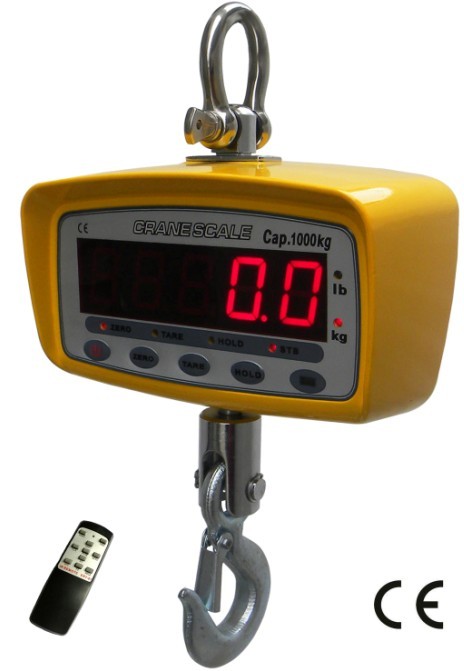

HM series

¡ô Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ô Multi-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning,operation through remote controller functions.
¡ô User-friendly design:
Cast aluminium housing and aluminium front panel for maximum protection; Large red 5 digit LED display (digit height: 30mm); Safety factor up to 4 times capacity; Battery Operated with low battery indication; Automatic switch-off power-saving function.

Standard
OIML class III
Display
30mm (1.2¡¯¡¯) 5digits LCD/LED
Zero Range
4% F.S.
Tare Range
100% F.S.
Stable Time
¡Ü10seconds
Overload Indication
100% F.S. + 9e
Max. Safety Load
125% F.S.
Ultimate Load
400% F.S.
Battery Life
¡Ý50 hours
Battery Type
Fully sealed Lead-Acid battery, 6V/5Ah
Adapter
DC9V/1000mA
Operating Humidity
¡Ü85% RH under 20¡æ
Remote Controller Distance
Min. 15m
Battery of Remote Controller
AAA battery, 1.5V¡Á2
Operating Temp
- 10¡æ ~ + 40¡æ



MODEL
Max. capacity(kg)
Min. weigh(kg)
Division(kg)
Total dispay counts(n)
HM-005
50
0.4
0.02
2500
HM -01
100
1
0.05
2000
HM -02
200
2
0.1
2000
HM -03
300
2
0.1
3000
HM -05
500
4
0.2
2500
HM -1
1000
10
0.5
2000

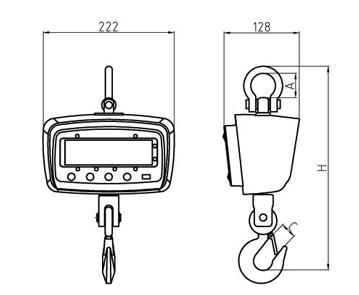

MODEL
A(mm)
C(mm)
H(mm)
N.W.(kg)
HM -005
33
24
320
4
HM -01
33
24
320
4
HM -02
33
24
320
4
HM -03
33
24
320
4
HM -05
41
25
345
4.2
HM -1
41
25
345
4.2
