HA series

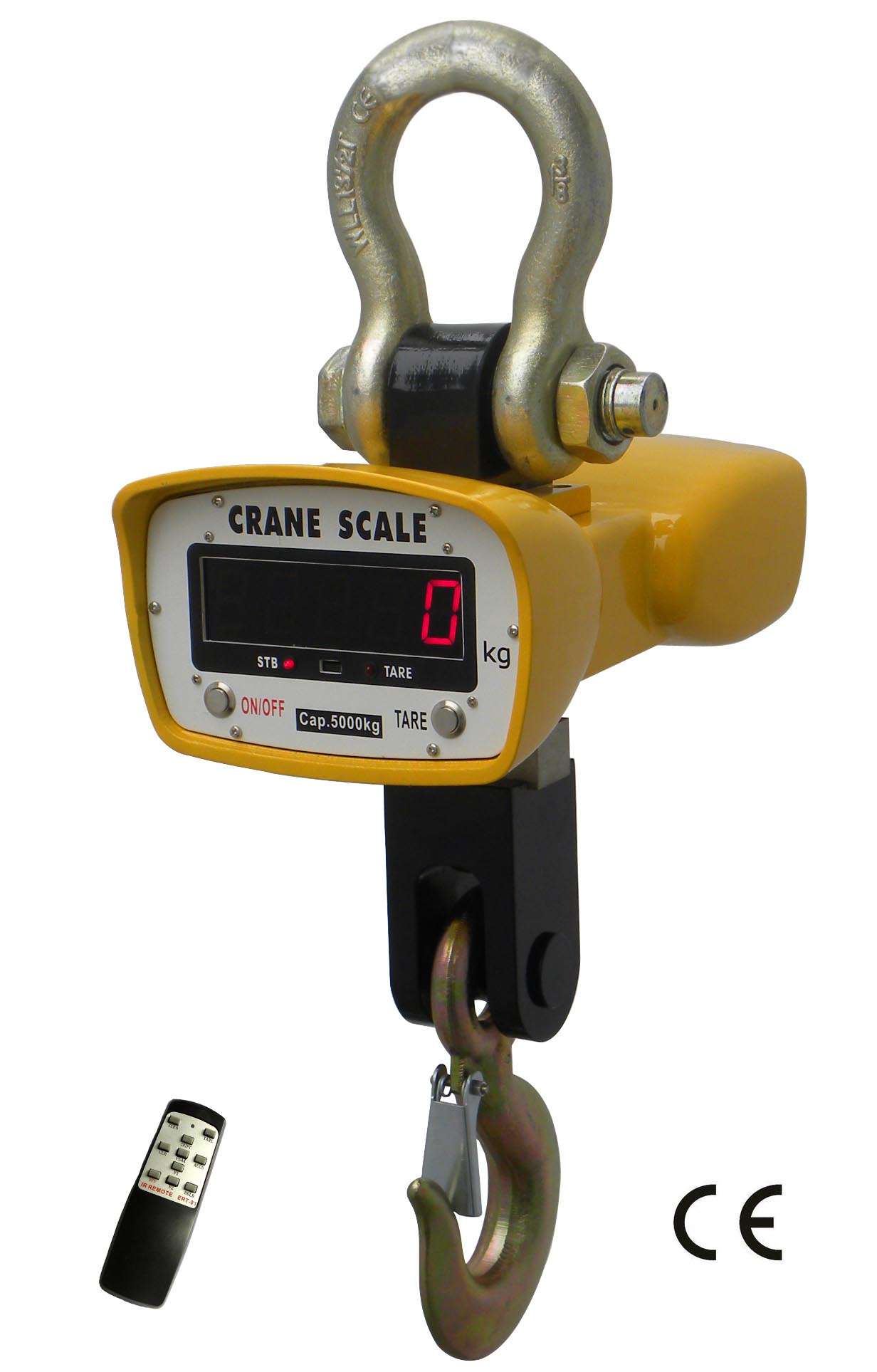

HA series crane scale

¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, operate through remote controller,etc functions.
¡ôUser-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, operate through remote controller,etc functions.
¡ôUser-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

Standard
According to OIML class III
Display
30mm (1.2¡¯¡¯) 5digits LCD/LED
Zero Range
4% F.S.
Tare Range
100% F.S.
Stable Time
¡Ü10seconds
Overload Indication
¡Ü10seconds
Overload Indication
100% F.S. + 9e
Max. Safety Load
125% F.S.
Ultimate Load
400% F.S.
Battery Life
¡Ý70 hours
Battery Type
Fully sealed Lead-Acid battery, 6V/7Ah
Adapter
DC9V/1000mA
Operating Temp.
- 10¡æ ~ + 40¡æ
Operating Humidity
¡Ü85% RH under 20¡æ
Remote Controller Distance
Min. 15m
Battery of Remote Controller
AAA battery, 1.5V¡Á2

MODEL
Max. capacity(kg)
Min. weigh(kg)
Division(kg)
Total dispay counts (n)
HA-1
1000
10
0.5
2000
HA -2
2000
20
1
2000
HA -3
3000
20
1
3000
HA -5
5000
40
2
2500
HA -10
10000
100
5
2000
HA -15
15000
100
5
3000
HA -20
20000
200
10
2000

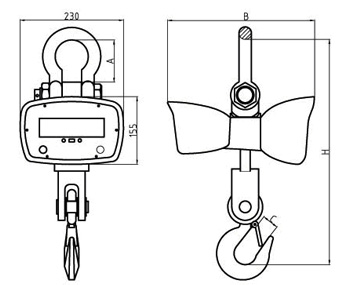

MODEL
A(mm)
B(mm)
C(mm)
H(mm)
N.W.(kg)
HA-1
67
350
33
450
13.5
HA -2
67
350
33
450
13.5
HA -3
95
350
40
510
17
HA -5
113
365
50
625
26
HA -10
122
365
60
760
40
HA -15
144
365
70
835
55
HA -20
166
365
85
900
68
