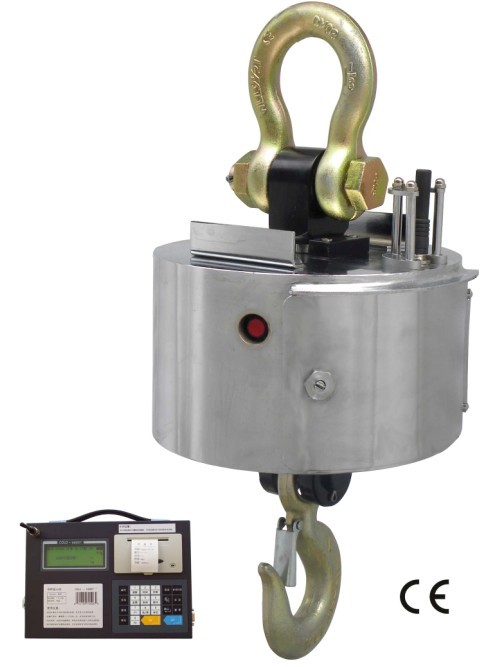

Steel housing scale body, high-tension shackle and hook；Weighing data save protection in case of power off；keyboard calibration, easy to operate； Power saving mode, turn off automatically after 1 hour with no operation；Gathering up to data records of 2000 weighing, records can be sorted, searched and printed；Micro-printer in indicator；RS232 optional.

Main technical data

Standard	According to OIML class III
Display	LCD with backlight
Zero Range	4% F.S.
Tare Range	20% F.S.
Stable Time	≤10 seconds
Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Scale Battery Type	6V/4Ah Ni-H battery
Indicator Battery Type	7.2V/2.8Ah Ni-H battery
Operating Temp.	- 10℃ ~ + 40℃
Operating Humidity	≤85% RH under 20℃
Operation Distance	200m in wide space
Frequency	450MHz

Specification

MODEL	Max. capacity (kg)	Min. weigh (kg)	Division (kg)	Total display counts (n)
HW-1	1000	10	0.5	2000
HW-2	2000	20	1	2000
HW -3	3000	20	1	3000
HW1-5	5000	40	2	2500
HW-10	10000	100	5	2000
HW-15	15000	100	5	3000
HW -20	20000	200	10	2000
HW-30	30000	200	10	3000
HW-50	50000	400	20	2500

Appearance illustration

MODEL	A(mm)	C(mm)	Φ(mm)	E(mm)	H(mm)	N.W.(kg)
HW -1	67	35	270	160	450	22.5
HW -2	67	35	270	160	450	22.5
HW -3	95	45	270	160	510	26
HW -5	113	55	325	185	625	39
HW -10	122	65	325	185	710	50
HW-15	144	70	325	185	835	69
HW -20	166	85	325	185	900	82
HW-30	285	100	375	220	1140	164
HW -50	360	160	450	280	1680	490
