HG series crane scale
¡ôSpecial design:
Used under high temperature environment. Especially in casting industry.
¡ô Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, Calibration through remote controller ,etc functions.
Features:
|
Min distance between scale and high temperature |
|
1000¡æ |
1200¡æ |
1400¡æ |
1600¡æ |
|
1.6m |
1.8m |
2m |
2.2m |
Main technical data:
¡ôSpecial design:
Used under high temperature environment. Especially in casting industry.
¡ô Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, Calibration through remote controller ,etc functions.
|
Min distance between scale and high temperature |
|
1000¡æ |
1200¡æ |
1400¡æ |
1600¡æ |
|
1.6m |
1.8m |
2m |
2.2m |
|
Standard |
According to OIML class III |
|
Display |
30mm (1.2¡¯¡¯) 5digits LCD/LED |
|
Zero Range |
4% F.S. |
|
Tare Range |
100% F.S. |
|
Stable Time |
¡Ü10seconds |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
150% F.S. |
|
Max. Safety Load |
150% F.S. |
|
Ultimate Load |
700% F.S. |
|
Battery Life |
¡Ý70 hours |
|
Battery Type |
Fully sealed Lead-Acid battery, 6V/7Ah |
|
Adapter |
DC9V/1000mA |
|
Operating Humidity |
¡Ü85% RH under 20¡æ |
|
Remote Controller Distance |
Min. 15m |
|
Battery of Remote Controller |
AAA battery, 1.5V¡Á2 |
|
|
|
|
|
|
MODEL |
Max. capacity(kg) |
Min. weigh(kg) |
Division(kg) |
Total dispay counts (n) |
|
HG-1 |
1000 |
10 |
0.5 |
2000 |
|
HG -2 |
2000 |
20 |
1 |
2000 |
|
HG -3 |
3000 |
20 |
1 |
2000 |
|
HG -5 |
5000 |
40 |
2 |
2500 |
|
HG -10 |
10000 |
100 |
5 |
2000 |
|
HG -15 |
|
|
|
|
|

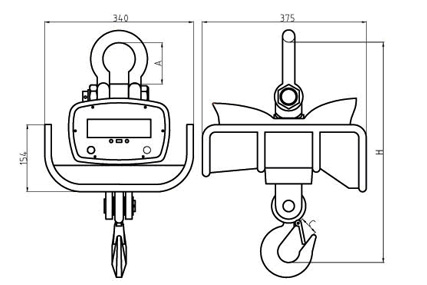

MODEL |
A(mm) |
C(mm) |
H(mm) |
N.W.(kg) |
|
HG -1 |
67 |
33 |
450 |
18.5 |
|
HG -2 |
95 |
40 |
510 |
22 |
|
HG -3 |
113 |
50 |
625 |
31 |
|
HG -5 |
122 |
60 |
710 |
43 |
|
HG -10 |
144 |
70 |
835 |
60 |
|
HG -15 |
166 |
85 |
900 |
73 |
|
