HS series

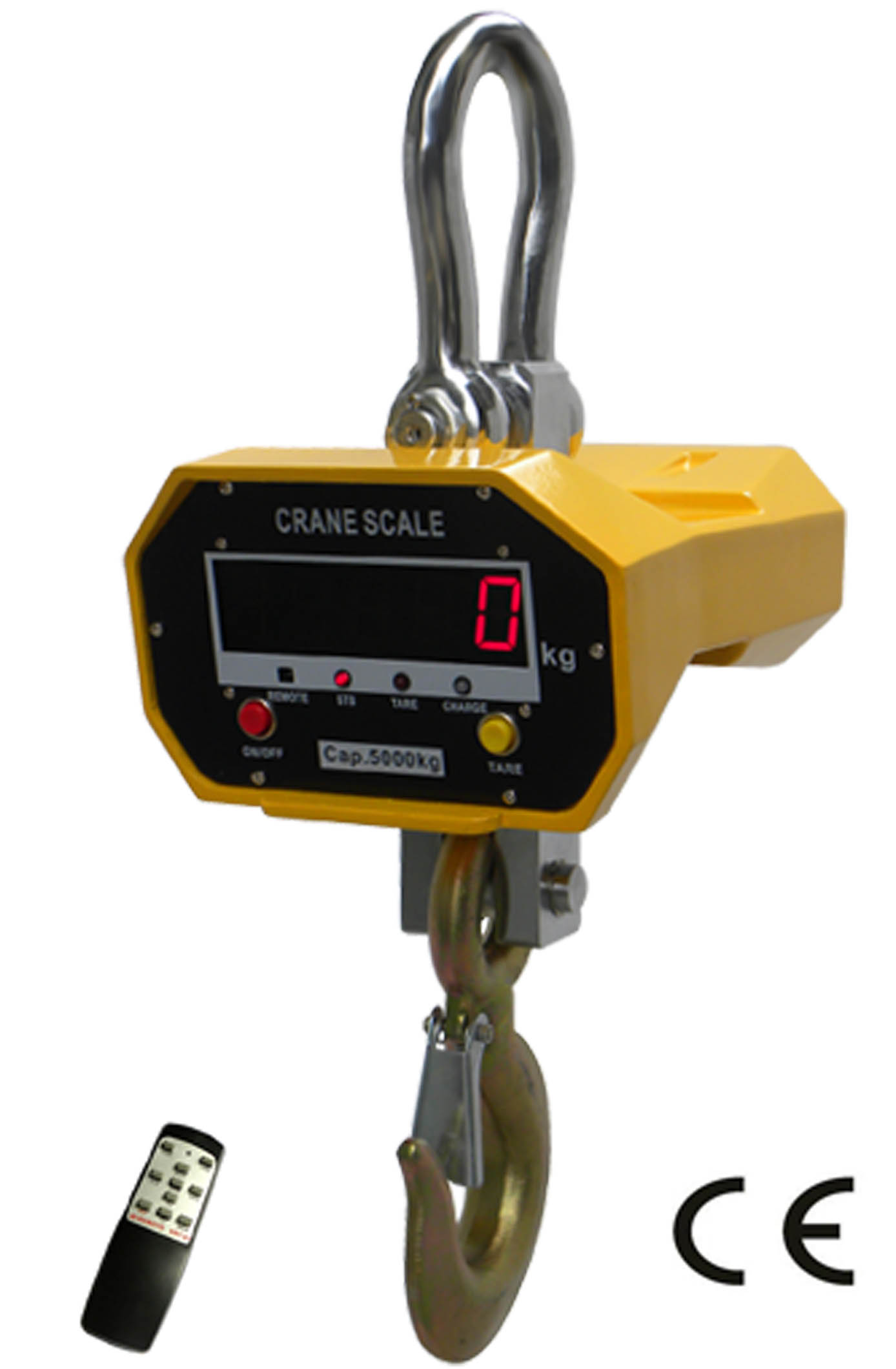

HS series crane scale

¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, operate through remote controller ,etc functions.
¡ôUser-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.
¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, operate through remote controller ,etc functions.
¡ôUser-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

Specification:
¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, operate through remote controller ,etc functions.
¡ôUser-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

Standard
According to OIML class III

Display
30mm (1.2¡¯¡¯) 5digits LCD/LED

Zero Range
4% F.S.

Tare Range
100% F.S.

Stable Time
¡Ü10seconds

Overload Indication
100% F.S. + 9e

Max. Safety Load
125% F.S.

Ultimate Load
400% F.S.

Battery Life
¡Ý50 hours

Battery Type
Fully sealed Lead-Acid battery, 6V/4.5Ah

Adapter
DC9V/1000mA

Operating Humidity
¡Ü85% RH under 20¡æ

Remote Controller Distance
Min. 15m

Battery of Remote Controller
AAA battery, 1.5V¡Á2

MODEL
Max. capacity(kg)
Min. weigh(kg)
Division(kg)
Total dispay counts(n)
HS-2
2000
20
1
2000
HS-3
3000
20
1
3000
HS -5
5000
40
2
2500
HS -10
10000
100
5
3000
HS -15
15000
200
5
3000
HS -20
20000
200
10
2000


¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, operate through remote controller ,etc functions.
¡ôUser-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

MODEL
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
H(mm)
N.W.(kg)
HS -2
95
260
33
195
135
430
10.5
HS -3
95
260
40
195
135
455
11.5
HS -5
120
325
50
240
165
535
17.5
HS -10
124
325
60
240
165
660
27.5
HS -15
225
345
70
240
165
855
49
HS -20
225
345
85
240
165
920
56
